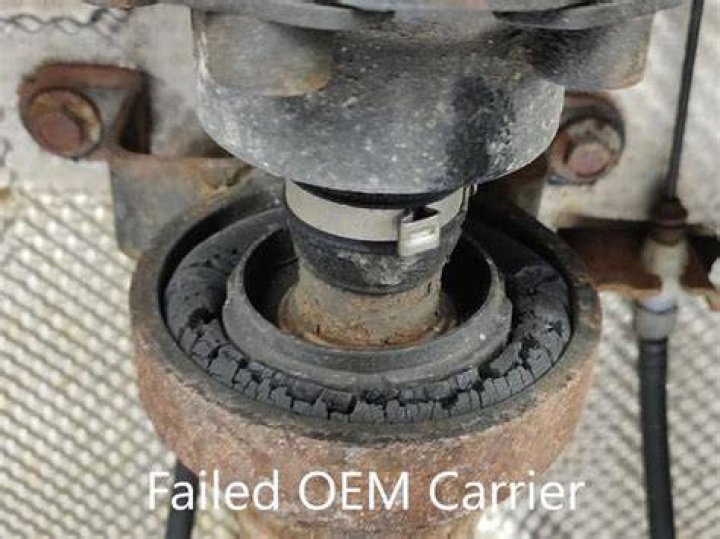

The internal bearings on the carrier bearings can dry out or wear, and this can be heard as a grinding or spinning noise if the carrier bearings are bad. … If a u-joint is binding, it can create a shake that can damage the rubber on the carrier bearing and loosen it over time.
Does a bad carrier bearing make noise?
The internal bearings on the carrier bearings can dry out or wear, and this can be heard as a grinding or spinning noise if the carrier bearings are bad. … If a u-joint is binding, it can create a shake that can damage the rubber on the carrier bearing and loosen it over time.
What causes carrier bearing to go out?
Sometimes carrier bearings fail because of the extreme operating conditions, poor handling or poor installation while sometimes it does happen because of lack of lubrication or some other relevant issues.
How long does it take to replace a carrier bearing?
The job should take about two hours.
How much does it cost to replace a drive shaft bearing?
The average replacement cost for your driveshaft centre bearing starts at just $200 but can range up to $1055 or more, depending on the make and model you drive.
Can a bad carrier bearing cause transmission problems?
While driving, the bearing allows the drive shaft some flexibility; however, if there is too much flex due to a worn bearing, the vehicle may start to have problems. The center support bearing provides a connection point among the transmission and rear differential.
How much play should there be in a carrier bearing?
A carrier bearing should have give, now as to how easy is it to be moved is the better question. 1/4” in any direction is ok.
Will a bad carrier bearing cause vibration?
Detecting Driveshaft Issues Resulting From Worn Bearings Worn bearings can cause the driveshaft to shake or vibrate and if left unattended can lead to further damage of the other drivetrain components.
Can a carrier bearing be replaced?
A worn carrier bearing facing any of the mentioned symptoms must be replaced right away. In many cases, the vehicle can be driven to a repair facility, however, if the drive shaft is moving too freely there is a great chance of causing further damage through driving or towing with the wheels on the ground.
How do you remove carrier bearings without pressing?
- Cut the bearing cage with the cutoff tool. Remove all the bearings and the cage. …
- Place the chisel in the groove made by the cutoff tool, and strike it with the large hammer to break the inner race. …
- Place the opposite end of the carrier on the two-by-four block of wood.
Article first time published on
Can you drive without the drive shaft?
Can you drive a 4WD truck without a front or rear driveshaft? Yes, this is possible, if you drive a traditional 4WD with a lockable center differential. Remove the damaged drive shaft and lock the center differential. … You will be able to safely drive the vehicle in front-wheel drive or rear-wheel drive mode.
What are the signs of a bad drive shaft?
- Vibrations from under the vehicle. A common symptom of a failing driveshaft is an intense shaking coming from underneath the vehicle. …
- Difficulty turning. …
- Loud clunking noise. …
- Car shudders upon acceleration. …
- Squeaking noise. …
- Clicking or knocking noise.
How much play should be in a drive shaft?
@parzival some movement is definitely expected and 1/16th of an inch seems to be within those tolerances. Make sure that you do not get a vibration sound (thumping) while driving which would be a more common for that bearing.
How much play should a carrier bearing have Tacoma?
1/4″-1/2″ is normal even on a brand new bearing.
Is a broken drive shaft expensive to fix?
Usually, the Drive Shaft Repair costs will differ based on what caused the issue and how fast it can be repaired. If you just have to replace it, that would be anywhere from $500 to $1000. However, you can also expect the cost of the parts to be around half that number and the labor costs around $200.
What does a bad U joint sound like?
A bad u-joint can cause a clunking sound or jerkiness while driving, particularly when letting off of and pressing the accelerator. A bad u-joint can also cause vibration at certain speeds, emanating from the center or rear of the vehicle.
What do carrier bearings do?
A part that is integral to your vehicle’s ride is the carrier bearing on your axles or driveshaft. A carrier bearing has a simple job, it keeps the axle or driveshaft firmly in place, and reduces vibration from these parts. … Inherently, a carrier bearing is often the culprit of vehicle shaking and vibration.
What does a bad pinion gear sound like?
Whirring Noise: One of the pronounced bad pinion-bearing symptoms is its whirring noise during acceleration or deceleration at various speeds. Worn out pinion bearings create more whirring noise rather than rumbling because it rotates several times faster than the carrier assembly of the vehicle.
Can you drive without CV joint?
Yes you can drive your truck with out cv joints. But you do need part of the cv joint . If that makes any sence. If you break a cv joint pull it apart and remove the joint of the cv closes to the wheel.Be sure to remove the other parts of the cv joint not used.
Can you drive with a broken CV?
Driving on-road with busted CV joint can be dangerous, because you never know when the broken pieces will jam in the joint, potentially locking the wheel or the steering action. … You’ll need to remove the wheel and the brake calliper, and dismantle the hub assembly to get at the busted CV bits.
How long can you drive without front shaft?
You can drive the vehicle indefinitely in this mode with one driveshaft removed. Never drive with one driveshaft removed unless the CDL is locked; you can burn up the viscous coupler in vehicles so equiped, but also the vehicle will roll even if the transmission is Park (unless the Emergency brake is engaged).
How do you test a drive shaft?
Jack it up, hold the drive shaft in 1 hand as tight as possible and rotate the wheel back and forth to feel for any play. If you notice anything doing something as easy as that, compared to the engine turning it, you’ll know it’s FUBAR’d.
